Description
System Overview

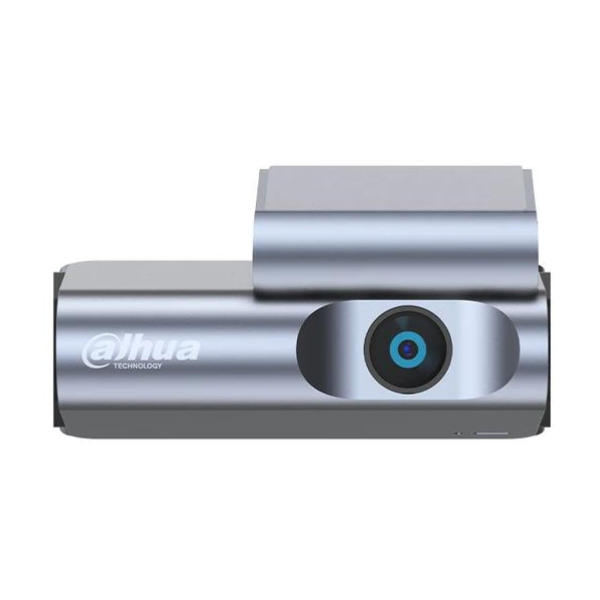

The Dahua DHI-DAE-HC2301WV-M6 Dash Camera is a high resolution automotive dash camera that features easy installation and operation. The device can be communicated with its DH Dashcam app through built-in Wi-Fi. The built-in G-Sensor can automatically lock the currently recording video when it senses a crash or strong vibration to prevent the video from being overwritten.
MicroSD cards up to 128 GB are supported. The built-in mic and speaker can be used to record and play back. Highlights 2304P×1296P ultra high resolution image Wide field of view F1.8 iris offers crisp night imaging Mini body Wi-Fi AP module G-Sensor module supports collision detection and video lock Supports MicroSD card up to 128 GB Compatible with mobile client for setup, live view, recording search and backup Voice control
Technical Specification
Camera Image Sensor 1/2.8'' CMOS
Camera Pixel 3MP Frame Rate 2304×1296P@30FPS;1920×1080P@30FPS;1280× 720P@30FPS
Field of View 139° Iris F1.8 Video Compression H.265 OSD Display time, date, etc.
Image format JPEG Storage 1 TF card (up to 128GB)
Communication Module WiFi AP G-sensor Built in, supports locking video after collision.
Interface Power Supply Mini USB Audio Input Build-in microphone Audio Output Build-in speaker
General Operating Temperature -20°C to 70°C(-4°F to 158°F) Operating humidity ≤95%(No condensation)
Power Supply DC 5V/1.5A
Power Consumption ≤7.5W
Dimensions 80mm×48mm×28.8mm(3.15′′×1.89′′×1.13′′) Weight ≈52.6g
