Description

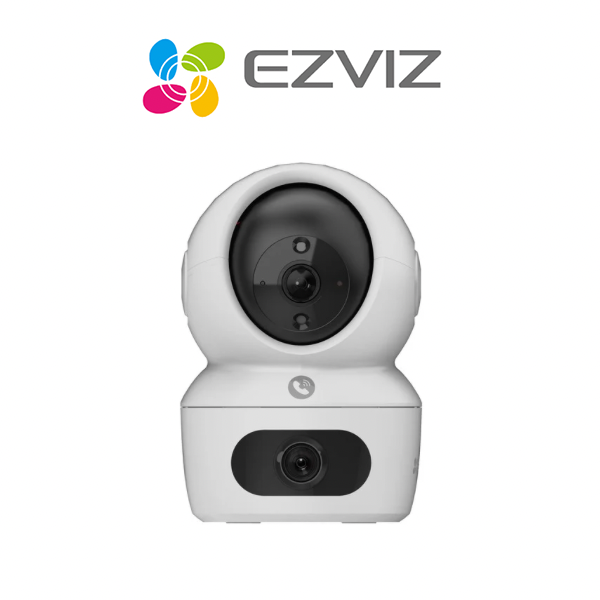

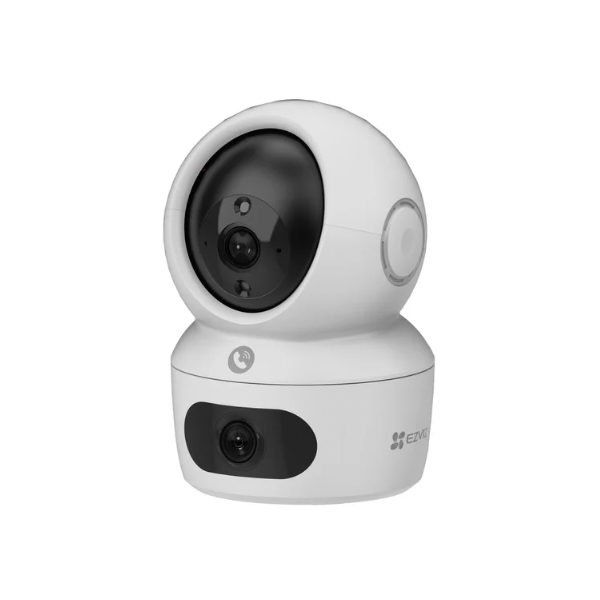

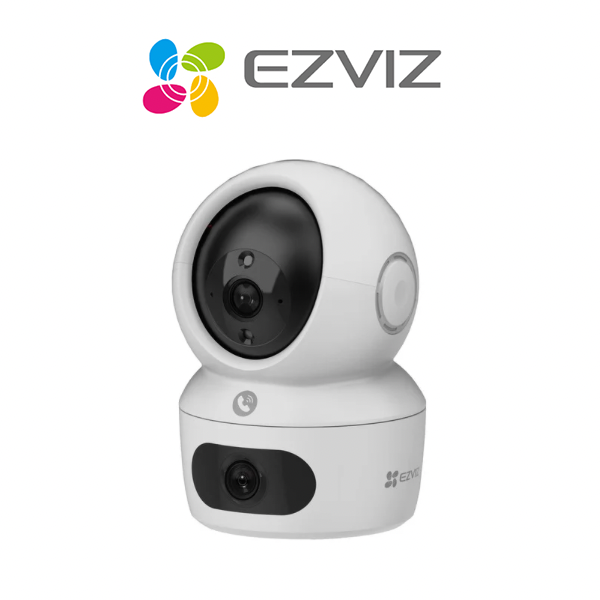

EZVIZ H7C Dual 2K+ Patrol Mode Pan/Tilt WiFi Indoor Camera
- 2K⁺ & 2K⁺ Dual Lenses
- Panoramic View
- Two-Way Calling with Touch Button
- Smart Color Night Vision
- AI-Powered Human Shape Detection
- Loud Noise Detectio
- Co-Detection for Auto Smart Tracking
- One-Tap Control for Linked View Change
- Two Patrol Modes for Auto-Security
- Sleep Mode for Privacy Protection
- Supports Dual-Band Wi-Fi 6 (2.4 / 5 GHz)
- H.265 Video Technology
- Supports MicroSD Card (Up to 512 GB) & EZVIZ CloudPlay Storage
- Smart Integration with Google Assistant & Amazon Alexa
With EZVIZ’s unique dual-lens technology, the H7c Dual provides next-level protection that’s usually achieved through a multi-camera setup. It uses a fixed lens and a main pan-and-tilt lens at the same time – the duo works independently or together in a way that is much smarter than your ordinary camera.
The H7c Dual captures information that’s more than double of your old home camera. It uses a motorized pan and tilt camera to monitor a large interior space with almost no blind spots, and ensure that you always keep the key area under continuous watch with a fixed view, too.
The two lenses respond to each other to provide the protection that makes it much more difficult for anyone to move out of sight. When a person enters the zone watched by the fixed lens, the PT lens will automatically rotate to such viewing angle to lock on the person, follow to record the entire event, and send notifications with video footages.
The camera allows you to understand the whole picture while paying attention to the important details. Both wide angle and close-up views are displayed simultaneously on your EZVIZ App. Tap on a specific area in the wide-angle viewing box so that a close-up shot will render much more details for you to double check.
A lot of activities go on inside your home, but you don’t want to get constantly alerted when your curtains flutter in the wind. The H7c Dual is smart enough to notice human activities in particular and can capture sudden sound changes in the environment – all without additional fees to unlock.
On set time intervals, the PT lens can automatically complete check-ups to eliminate blind spots. You can customize patrol routes flexibly for tailored focuses, or simply ask it to complete a full-circle horizontal spin.
Staying connected with your family is always a necessity. A simple tap on the camera is all it takes for your children or elderly parents to reach you.
Multiple ways for easy pairing:
With the exclusive Bluetooth configuration, you can effortlessly pair devices and set up even when connectivity is challenging.
Stay in touch with two-way talk:
You can easily engage in real-time conversations with your loved ones even from afar. The H7c Dual provides high-quality two-way audio.
Connection for boosted performance:
Set up the camera network, either wired or wirelessly. You can connect the camera to either 2.4 or 5 GHz¹ band to ensure a strong Wi-Fi signal.
Hands-free control:
With integration to your voice assistants, you can pull up the video feed by simply saying “Alexa” or “Hey Google.
Dual video storage options:
Capture and secure important moments or unforgettable memories on a large 512GB microSD card, or by subscribing to the EZVIZ CloudPlay.
H.265 Video Technology:
The H.265 creates a smoother viewing experience while only using about 50% of the data storage space required by cameras with H.264.
The H7c Dual uses starlight lenses to render high-quality colorful images even in low light conditions. Furthermore, it uses a built-in spotlight to deliver color night vision in complete darkness.
When the smart night vision mode is activated, it will automatically switch its view from black-and-white to full-color upon motion detection.
Broader and smarter protection with dual lenses:
| Specifications | |
|---|---|
| Model | CS-H7c-R100-8G44WF |
| Camera | |
| Resolution | Dual 2K+ Resolution |
| Image Sensor | 1/3" Progressive Scan CMOS |
| Shutter Speed | Self-adaptive shutter |
| Fixed Lens | 2.8mm@F1.6 , view angle: 108°(Diagonal), 92° (Horizontal), 50°(Vertical) |
| PT Lens | 6mm@F1.6 , view angle: 60°(Diagonal), 51° (Horizontal), 28°(Vertical) |
| Lens Mount | M12 |
| Day & Night | IR-cut filter with auto-switching |
| DNR | 3D DNR |
| WDR | Digital WDR |
| Compression | |
| Video Compression | H.264/H.265 |
| Video Bit Rate | Adaptive bit rate. |
| Network | |
| Smart Alarm | Motion Detection, Human Shape Detection, Loud Noise Detection, Patrol Mode Detection |
| Wi-Fi Pairing | AP paring |
| Protocol | EZVIZ cloud proprietary protocol |
| Interface Protocol | EZVIZ cloud proprietary protocol |
| Image | |
| Max. Resolution | 2560 × 1440 |
| Frame Rate | Max:30fps; Self-Adaptive during network transmission |
| Interface | |
| Storage | Micro SD card slot (Max. 512G) |
| Power | TYPE-C |
| Wired Network | RJ45 X 1 (10M/100M self-adaptive Ethernet port) |
| Wi-Fi | |
| Standard | IEEE802.11a, IEEE802.11b, 802.11g, 802.11n,802.11ac 802.11ax |
| Frequency Range | 2.4GHz: 2.4 GHz ~ 2.4835 GHz 5GHz: 5.15GHz~5.25GHz |
| Channel Bandwidth | 2.4GHz Supports 20MHz 5GHz Supports 80MHz |
| Security | WPA-PSK, WPA2-PSK, WPA3-Personal |
| Transmission Rate | 2.4GHz Max. Rate Support: 11b_11M，11g_54M, 11n_MCS7_20M，11ax_MCS11_20M 5.15-5.25GHz Max. Rate Support: 11a_54M, 11n_MCS7_20-40M，11ac_MCS9_20-40-80M, 11ax_MCS11_20-40-80M |
| Output Power(EIRP) | 20 dBm |
| Antenna Gain | 2.56dBi@2.48GHz，3.18dBi@5.22GHz |
| General | |
| Operating Conditions | -10°C to 45°C ( -14 °F to 113 °F ) Humidity 95% or less (non-condensing) |
| Power Consumption | 8W max |
| Power Supply | DC 5V/2A |
| IR Range | MAX. 10 meters (32.81ft) |
| Dimensions | 88 × 88 × 131.5 mm (3.46 × 3.47 ×4.69 in) |
| Package Dimensions | 200 ×105 ×105 mm (7.87 × 4.13 × 4.13 in) |
| Net Weight | 270 g (9.52 oz) |
| Bare Weight | 499 g (17.60 oz) |
| In the box | |
| - Camera (x1) | |
| - Power Adapter (x1) | |
| - Power Cable (x1) | |
| - Drill Template (x1) | |
| - Mounting Plate (x1) | |
| - Screw Kit (x1) | |
| - Regulatory Information (x1) | |
| - Quick Start Guide (x1) | |
| Certifications | |
| Certifications | CE / UKCA / WEEE / RoHS / REACH / UL |
