Description

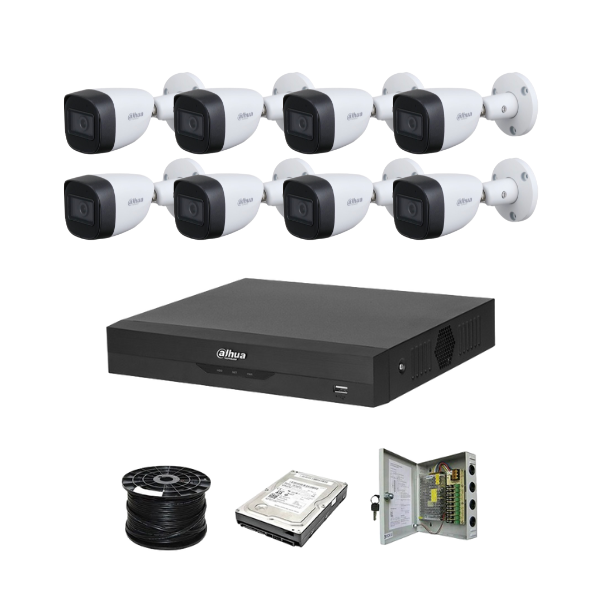

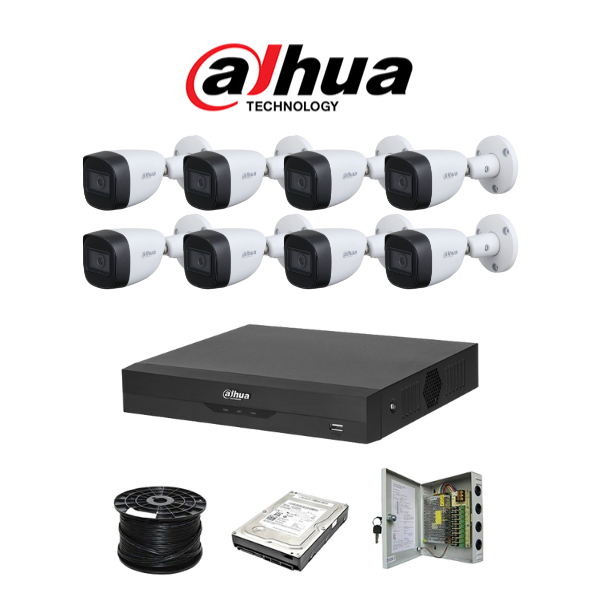

1x XVR5108HS-I3 - 8CH Penta-brid 5MP Value/1080P Compact 1U 1HDD WizSense Digital Video Recorder
* The information below only applies to hardware version 3.0. of the product.
> 2-channel QuickPick 2.0 for analog channels which improves target retrieval efficiency.
> 8-channel SMD Plus for analog channels or 12-channel SMD by camera which allows the device to trigger accurate alarms for humans and vehicles.
> 4-channel perimeter protection for analog channels which supports tripwire and intrusion detection powered by AI.
> 2-channel face recognition for analog channels which supports face comparison.
> 8-channel AI Coding saves on storage and bandwidth while maintaining the details of targets in videos.
> Supports HDCVI, AHD, TVI, CVBS and IP video input.
> Supports up to 12-channel IP camera input and each channel can be up to 6 MP. The incoming bandwidth reaches 64 Mbps.
> Smart H.265+ and H.265 dual-stream video compression.
> IoT and POS capabilities.
8 x HAC-HFW1500CM(-A) - 5MP Starlight HDCVI IR Bullet Camera
* The parameters and datasheets below can only be applied to 1500-S2 series
* In order to use the 5MP 16:9 HDCVI camera, the firmware of XVR must be upgraded to V4.001.0000001.0.R.200908 or later version.
> Max 25 fps@5MP (16:9 video output)
> CVI/CVBS/AHD/TVI switchable
> 3.6 mm fixed lens (2.8 mm optional)
> Max. IR length 30m, Smart IR
> Built-in mic(-A)
> IP67, DC12V
1x 1TB HDD
1x 10amp PSU Box
1x RG59 100m
16x BNC connections
8x DC plugs
